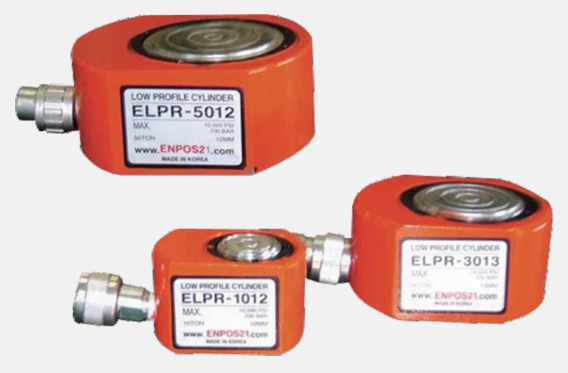

LOW HEIGHT JACKS / PAN CAKE JACKS

LOW HEIGHT JACKS / PAN CAKE JACKS

If you wish to work swiftly within confined spaces and experience high industrial efficiency, our Pan Cake or Low height Jacks will be the perfect products. With single-acting controls and spring-return, this particular equipment can be used in a myriad of narrow spaces. The equipment comes with domed piston structure ranging from 5 to 30 tons whereas the swivel cap is of 50 to 150 tons. For projects that demand low-clearance lifting, this equipment will be appropriate.

Model Cyl.Capacity (tons) Stroke (mm) Oil Capacity (cc) Effect Area (cm2) Cyl Bore Diameter (mm) Collapsed Height (mm) Outside Diameter (mm) Base to ADV.(mm) Weight (kg)

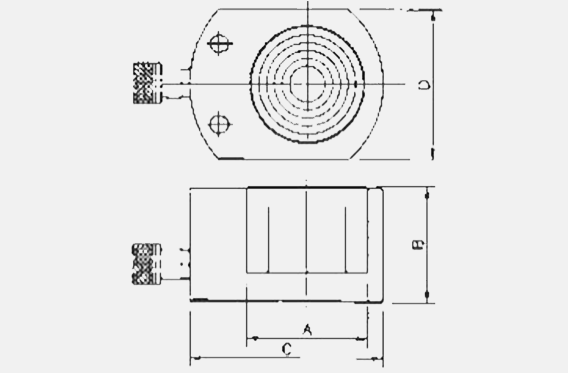

A B C D
ELPR-506 5 6 6.5 4 30 32 58 41 1.0
ELPR-1010 10 10 15.2 15.2 44 53 83 55 1.6
ELPR-2012 20 12 37.4 31.2 63 52 100 76 2.9
ELPR-3013 30 13 57.5 44.2 75 59 115 94 3.9
ELPR-5015 50 15 106.2 70.8 95 65 145 120 6.5
ELPR-7515 75 15 153.2 102.1 114 79 165 135 11
ELPR-10015 100 15 214.7 143.1 135 85 177 152 14
ELPR-15015 150 15 320.6 213.7 165 100 216 188 25

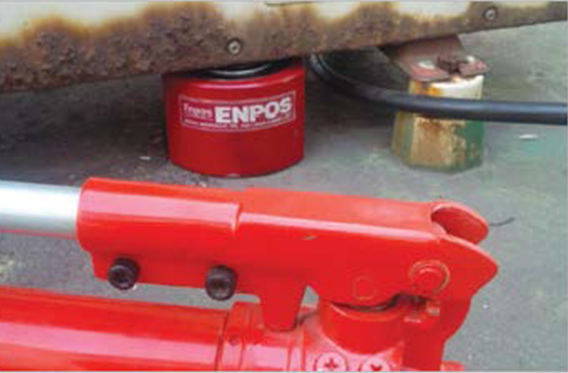

IDEAL FOR CONFINED AREAS FROM 40 mm to 100 mm CLEARANCE.

  1. Cylinder body, piston and gland nut treated for corrosion and abrasion resistance.
  2. Standard domed piston rod (5-30 ton) or swivel cap (50- 150 ton) minimize effects of offcenter loading.
  3. Unique heavy duty spring provides fast piston return.
  4. A 9796 3/8″ NPTF female half coupler is standard with each cylinder (It has a 3/8″ coupler which is not angled). Oil ports are 3/8″ NPTF.
  5. Couplers on all cylinders are angled upward for extra clearance.
  6. Single-acting, spring return
  7. Mounting hole optional
  8. Used in narrow area
  9. For Low Clearance Lifting
