- Mounting collar designed to hold full force.
- Single-acting, spring return
- Tube; SCM440
- Special size is available(optional).

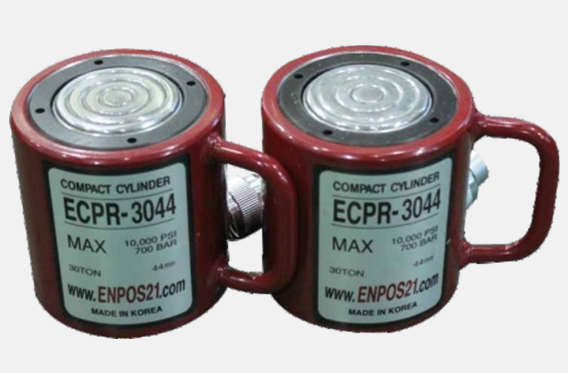

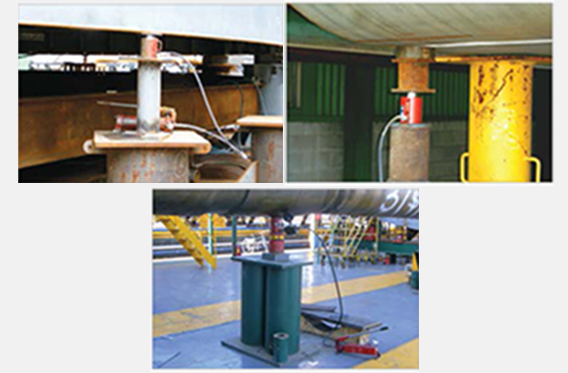

The ECPR model of compact jacks happen to be the best options for industrial lifting. It has a single-acting, spring-return feature that ensures full-force grip. We can also cater to specific requirements and offer them in special sizes. Oil capacity ranges from 64 to 1,417 cc and the stroke strength happens to be 40mm to 50mm. We stock compact jacks of the highest quality standards. Easy and swift functioning comes as a natural benefit.
| Model | Cyl.Capacity (tons) | Stroke (mm) | Oil Capacity (cc) | Effect Area (cm2) | Cyl Bore Diameter (mm) | Collapsed Height (mm) | Outside Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|

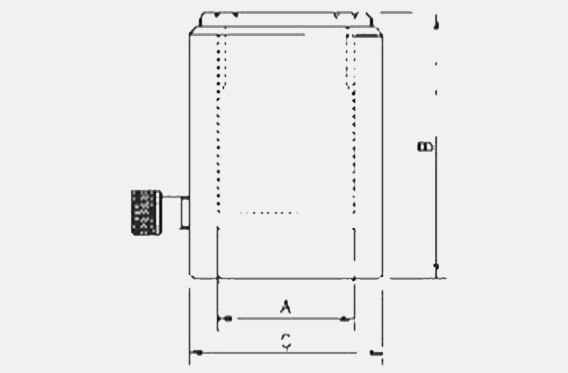

| A | B | C | ||||||
| ECPR-1044H | 10 | 40 | 64 | 15.9 | 45 | 99 | 68 | 3.2 |
| ECPR-1050 | 50 | 80 | 128 | 63 | 2.7 | |||
| ECPR-2038 | 20 | 38 | 119 | 31.2 | 65 | 98 | 85 | 4 |
| ECPR-2044H | 44 | 125 | 99 | 88 | 5.9 | |||
| ECPR-2050 | 20 | 50 | 156 | 128 | 85 | 4.9 | ||
| ECPR-3044H | 30 | 44 | 184 | 41.8 | 73 | 99 | 105 | 6 |
| ECPR-3050 | 50 | 209 | 140 | 97 | 6.8 | |||
| ECPR-5050H | 50 | 50 | 354 | 70.8 | 95 | 109 | 127 | 15 |
| ECPR-5050 | 354 | 150 | 122 | 11.5 | ||||
| ECPR-10050 | 100 | 50 | 664 | 132.7 | 130 | 139 | 175 | 20.4 |
| ECPR-15050 | 150 | 50 | 1,069 | 213.7 | 160 | 165 | 216 | 39 |
| ECPR-20050 | 200 | 50 | 1,417 | 283.4 | 190 | 180 | 245 | 61 |
