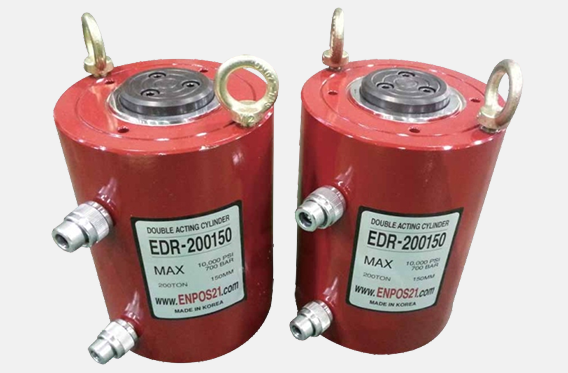

Our hydraulic return double-acting jack happens to be the perfect aid for intensive industrial projects. The mounting collar can support huge force and the smooth piston ensures corrosion and friction-resistance. Some of the other specs include:
Right from model EDR-20150 to EDR-500300, we have a stock of various items. Capacity ranges from 20 to 500 tons and stroke features ranges from 150mm to 300mm. Easy maneuverability and operability ensures swift performance.
| Model | Cyl.Capacity (tons) | Stroke (mm) | Oil Capacity (cc) | Effect Area (cm2) | Cyl Bore Diameter (mm) | Collapsed Height (mm) | Outside Diameter (mm) | Base to ADV.(mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

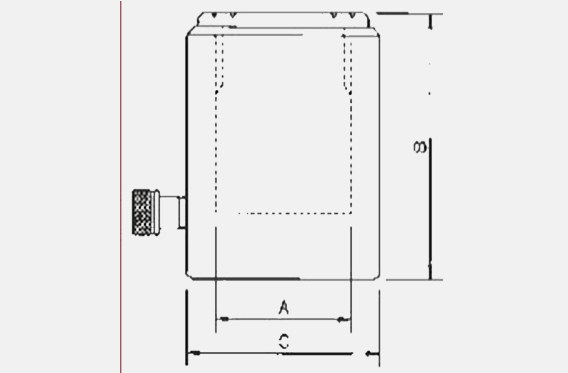

| A | B | C | D | ||||||
| EDR-20150 | 20 | 150 | 498 | 33.2 | 65 | 362 | 85 | 40 | 13.5 |
| EDR-20300 | 300 | 996 | 512 | 20 | |||||
| EDR-30150 | 30 | 150 | 663 | 44.2 | 75 | 396 | 102 | 45 | 24 |
| EDR-30300 | 300 | 1326 | 546 | 33 | |||||
| EDR-50150 | 50 | 150 | 1062 | 70.8 | 95 | 422 | 130 | 50 | 30 |
| EDR-50300 | 300 | 2124 | 572 | 50 | |||||
| EDR-100150 | 100 | 150 | 4477 | 298.4 | 195 | 515 | 240 | 70 | 135 |
| EDR-100300 | 300 | 8952 | 665 | 190 | |||||
| EDR-200150 | 200 | 150 | 1431 | 143.1 | 135 | 272 | 185 | 45 | 54 |
| EDR-200300 | 300 | 2147 | 322 | 63 | |||||
| EDR-300150 | 300 | 150 | 6503 | 433.5 | 235 | 570 | 315 | 80 | 150 |
| EDR-300300 | 300 | 13005 | 720 | 298 | |||||
| EDR-500150 | 500 | 10598 | 6503 | 706.5 | 300 | 620 | 395 | 90 | 440 |
| EDR-500300 | 300 | 21195 | 770 | 530 |
