Bearing Induction Heater Manufacturer in Mumbai, India

Bearing Induction Heater Manufacturer in Mumbai

BEARING INDUCTION HEATERS

High-quality Bearing Induction heaters happen to essential for mounting ball-bearing structures in an industrial unit. The products available at Pooja International are known for their performance, specifications, and features. With time-control and temperature controlling features, operations and maneuvering become easier than ever. Operators can rely on induction heating methodology for uniform heating of the equipment. An excellent micro-controller along with easy-to-use swivel arrangements make it the perfect choice for a myriad of projects.

CODES & STANDARDS: UNIQUE Bearing Induction Heaters are designed, constructed and tested as per standard manufacturing practices, compatible with various operating conditions & parameters and are suitable for array of intended applications.

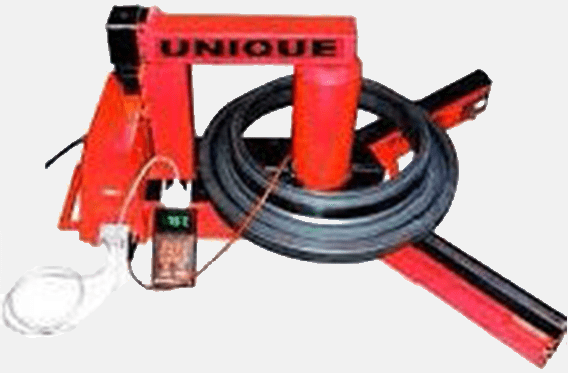

Bearing Induction Heater
Bearing Induction Heater Manufacturer
PRODUCT DATA UNITS UIH 2000 UIH 2001 UIH 2002 UIH 2003 UIH 2004
Diameter Bearing mm 20 to 300 20 to 300 20 to 400 60 to 500 60 to 900
Bearing Weight kg 40 32 50 70 700/1200
Power KVA 2.0/2.6 3.5/4.0 6.0/8.0 11/16 25/40
Voltage V 230 230 230/440 440 440
Power Control % 25,50,75& 100
Temperature Control (Range) °C 0-250 0-250 0-250 0-250 0-250
Maximum Control °C 400 400 400 400 400
Accuracy Control °C ±3 ±3 ±3 ±3 ±3
Time Control Minutes 0-99 0-99 0-99 0-99 0-99
Residual Magnetism A/cm <2 <2 <2 <2 <2
Overall Dimension (WxDxH) mm 300x260x250 300x270x355 430x300x310 590x330x390 1000x580x850
Space between Supports (Wxh) mm 100X130 130X155 190X170 320X205 350X450
Horizontal Yoke Size mm 14x14x220 20x20x250 65x65x350 80x80x500 100x100x620
20x20x220 30x30x250 -------------- -------------- --------------
20x20x220 30x30x250 -------------- -------------- --------------
45x45x220 50x50x250 -------------- -------------- --------------
Can Heat Sealed & Pre-greased Bearing ✔ ✔ ✔ ✔ ✔
Thermal Over Protection ✔ ✔ ✔ ✔ ✔
OTHER OPTIONAL ACCESSORIES
Horizontal Yoke Size mm 10x10x220 10x10x250 20x20x350 30x30x500 50x50x620
18x18x220 14x14x250 40x40x500 50x50x350 60x60x620
40x40x220 55x55x250 50x50x350 65x65x500 80x80x620
Digital Thermometer(0-500) °C ✔ ✔ ✔ ✔ ✔
Roll-Sliding Model ----------- ✔ ✔ ✔ ✔
Swing Arm Model ----------- ✔ ✔ ✔ ✔
Riser Block (Pair) mm ----------- ✔ ✔ ✔ ✔
Magnetic Temperature Probe ✔ ✔ ✔ ✔ ✔
Equipment Trolley ✔ ✔ ✔ ✔ ✔
PRODUCT DATA UNITS UIH 2000SPL UIH 2001SPL UIH 2002SPL UIH 2003SPL
Diameter Bearing mm 20 to 300 20 to 400 20 to 550 60 to 650
Bearing Weight kg 40 105 125 300
Power KVA 2.0/2.6 3.6/4.6 6.0/8.0 10.5/11
Voltage V 230
Power Control % 25,50,75& 100
Temperature Control (Range) °C 0-250 0-250 0-250 0-250
Maximum Control °C 400 400 400 400
Accuracy Control °C ±3 ±3 ±3 ±3
Time Control Minutes 0-99 0-99 0-99 0-99
Residual Magnetism A/cm <2 <2 <2 <2
Overall Dimension (WxDxH) mm 300x260x250 690x265x360 690x265x390 850x330x450
Space between Supports (Wxh) mm 100X130 160x215 200x245 200x245
Horizontal Yoke Size mm 14x14x220 56x56x300 60x60x350 70x70x450
20x20x220 28x28x300 28x28x350 40x40x450
45x45x220 14x14x300 14x14x350 --------------
Can Heat Sealed & Pre-greased Bearing ✔ ✔ ✔ ✔
Thermal Over Protection ✔ ✔ ✔ ✔
OTHER OPTIONAL ACCESSORIES
Horizontal Yoke Size mm 10x10x220 10x10x300 20x20x350 30x30x450
18x18x220 20x20x300 30x30x350 40x40x450
30x30x220 30x30x300 40x40x350 50x50x450
Digital Thermometer(0-500) °C ✔ ✔ ✔ ✔
Roll-Sliding Model ----------- ✔ ✔ ✔
Swing Arm Model ----------- ✔ ✔ ✔
Riser Block (Pair) mm ----------- ✔ ✔ ✔
Magnetic Temperature Probe ✔ ✔ ✔ ✔
Equipment Trolley ✔ ✔ ✔ ✔
  1. Advanced Micro-Processor Based Controller Which Includes The Inbuilt Memory
  2. Back-Up (In Case Of Power Failure) And Feather Touch Keyboard With LCD Display
  3. Mounted On Main Panel.
  4. Machine Shall Be Provided With A Suitable Trolley And Must Be Portable.
  5. Magnetic Temperature Probe
  6. Foldable Bearing Support Arms (Optional)
  7. Automated Time And Temperature Control
  8. Automated Demagnetization
  9. Supplied With 02 Set Of Heat Resistant Gloves.
  10. Trolley Mounted (Optional)
  11. Temperature Hold Function
  12. Automatic Sound Signal : Yes
  13. Demagnetization : Automatic
  14. Thermal Safety Guard : Yes

The Following Safety Features Are Provided:

  1. Automatic Overheating Protection To Protect The Machine And The Bearing
  2. Automatic Over-Current Protection
  3. Automatic Current Control
  4. Automatic Heater Cut Out On Reaching Preset Temperature
