We can provide customer-specified Stationary Scissor lift (Pit or floor mounted) with appropriate specifications and applications. With maximum lifting height up to 2300 mm and platform size of 3 m × 2.2 m max, almost every normal cargo can be loaded and unloaded. Overload protection, guard rails, manual emergency lowering valve and toe guards ensure accident-free operation. An infinite option of platform positioning is possible by using the manually operated push button.
/Stationary-Scissor-Lift-(Pit or Floor Mounted).png)
/Stationary-Scissor-Lift-(Pit or Floor Mounted)-2.png)
/Stationary-Scissor-Lift-(Pit or Floor Mounted)-3.png)
/Stationary-Scissor-Lift-(Pit or Floor Mounted)-4.png)
/Stationary-Scissor-Lift-(Pit or Floor Mounted)-6.png)
| Model No. | Loading Application | Capacity (Kg) | Table Size (l x w) | Maximum Lifting Ht. (mm) | Minimum / Closed Ht. (mm) |
|---|---|---|---|---|---|
| USSL-1 | Truck / Van | 1000 | 2000 x 1500 | 1500 | 350 |
| USSL-2 | Truck / Van | 2000 | 2000 x 1500 | 1500 | 350 |
| USSL-3 | Container / Truck | 2000 | 2500 x 2000 | 2000 | 450 |
| USSL-4 | Container / Truck | 3000 | 2500 x 2000 | 2000 | 450 |
| USSL-5 | Container / Truck | 2000 | 3000 x 2200 | 2300 | 550 |
| USSL-6 | Container / Truck | 3000 | 3000 x 2200 | 2300 | 550 |
| We reserve rights to change the Specifications and Design of the equipments without any notice to the customer because of continuous improvement in design and technology. | |||||

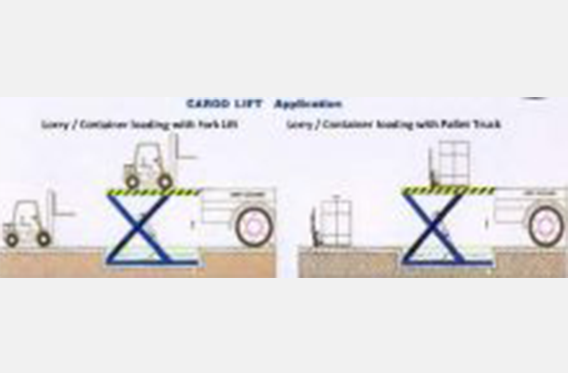

UNIQUE Pit Or Floor mounted Scissor Lifts provides a simple solution for loading and unloading cargo. With a push of a button the difference between loading bay and the truck is over come enabling smooth movement of cargo. It is suitable for loading and unloading from vans, canters trucks & containers. It eliminates labour cost.
